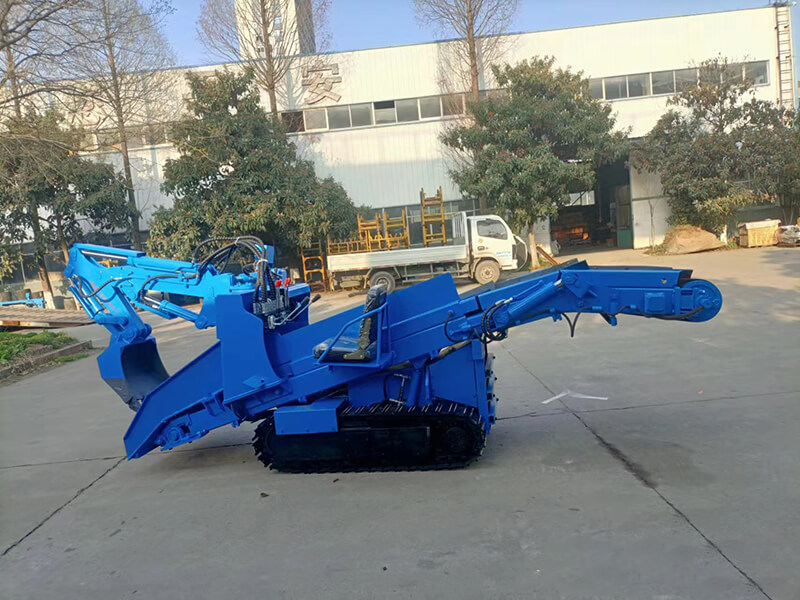

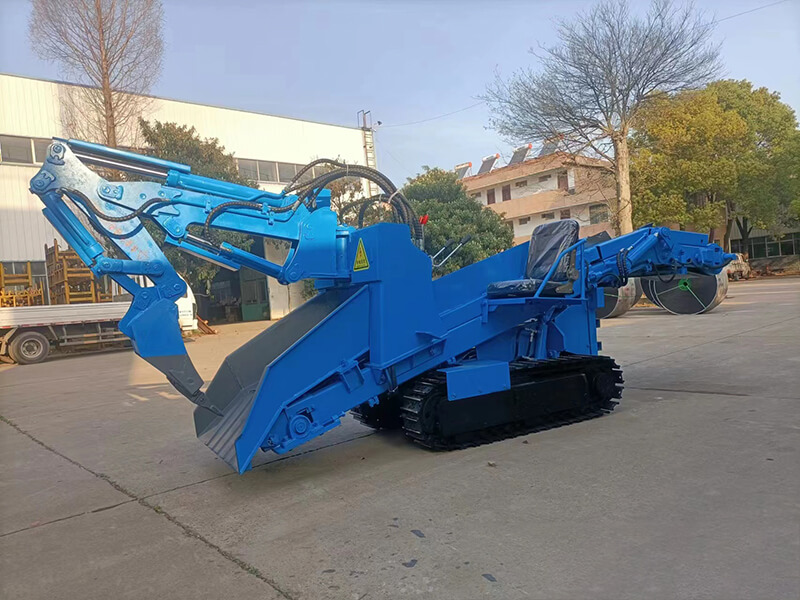

ZWY-40 Crawler Conveyor Loader
Product Description
Overview
The crawler belt conveyor loader ZWY-40 is a kind of mining equipment for continuous operation. The crawler belt conveyor loader is also called crawler belt excavator loader, which is mainly used in underground tunnels, such as metal mines, water diversion roadways, etc. Its main function is to collect all kinds of engineering gravel and to complete the transportation and loading work. The crawler belt conveyor loader manufacturer holds that the advantage of the crawler conveyor loader is that it is fast and flexible in transition, and can be used on multiple working faces.
Features:
This machine adopts military hydraulic system, the action adopts hydraulic pilot control, It is easy to be operated with the electro-hydraulic transmission, and it integrates four functions of excavation collection, transportation, walking, loading four functions in one; this machine adopts crawler chassis to walk, it has strong climbing force, compact structure, wide pick-up range, and can load rocks in the whole section without leaving dead ends, and does not need manual assistance to clean the working face, which reduces the labor intensity of workers.
ZWY-40 crawler belt conveyor loader is suitable for 1.5*1.6m working face, and with crawler walking, it is suitable for working on slopes within 10 degrees.
 |

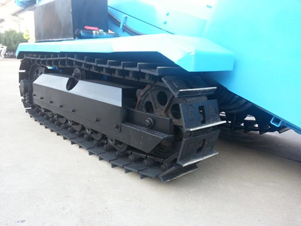

1, Walking system: The crawler track is adopted, and the working slope is about 10 degrees. The Chinese brand Yining hydraulic motor is used, and the track can walk freely on a slope of 10 degrees with good safety and stability. The conveyor belt is a chevron one. It has been verified that there is no problem with fine materials and slag on a slope of about 8-10 degrees. The main advantage is that it is cost-effective and practical. It not only solves the problem of walking safety on small slopes, but also reduces a great deal of investment. It is an ideal equipment for roadways with small slopes. |
| 2, Conveyor system: After more than 10 years of development, the belt conveyor system has become Zhongliang's advantage and specialty, which has been verified by the market for 10 years. | |

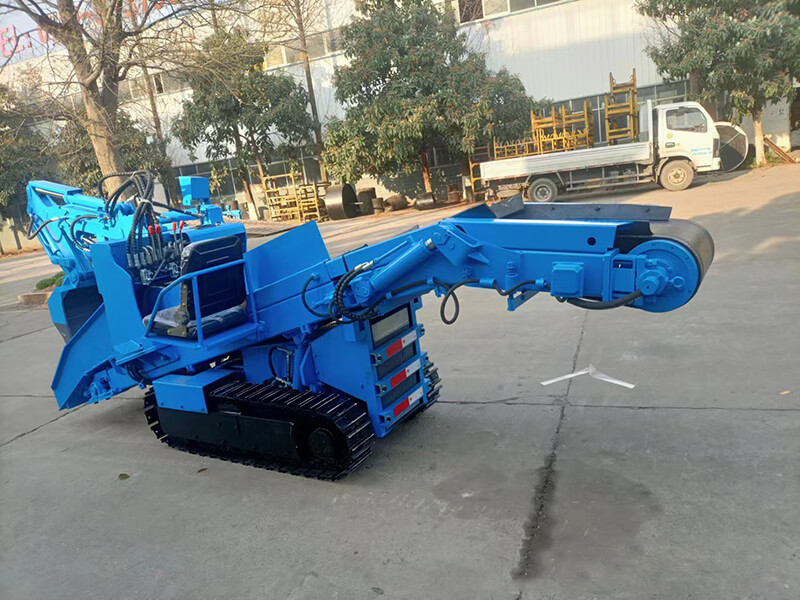

| Small mines have a small working surface with many curves. The disadvantage of large equipment is that the movement transfer remains unchanged, and some large equipment cannot enter the operation space at all. This vehicle adopts a rear folding design, which can be folded down by 1 meter when there is a curve, shortening the length of the whole machine, which ensures the flexible movement of the machine, and maximise the efficiency of the equipment. |
Technical Parameters
| Model | ZWY-40/14LP(Crawler Belt Conveyor Loader) | |
| Performance | Parameters | |
| Loading Capacity (m³/h) | ≥40 | |
| Weight(kg) | 2500±5% | |
| Working Section(m) | ≥1.5×1.6 | |
| Ground Clearance (mm) | 140 | |
| Digging Width (mm) | 2400 | |
| Digging Distance (mm) | 1100 | |
| Digging Height (mm) | 1400 | |
| Loading Height (mm) | 1200 | |
| Digging Depth (mm) | 250 | |
| Loading Length (mm) | 1100 | |
| Gradeability (°) | ≤16 | |
| Conveyor Speed (m/s) | 0.8±5% | |
| Motor total power (kW) | 14 | |
| Travelling Speed (m/s) | 0.3±5% | |
| Rated Working Pressure (Mpa) | 15 | |
| Electrical Insulation Strength | Three phase (MΩ) | >1.5 |
| Interphase(MΩ) | >1.5 | |
| Dimensions | Length (mm) | Overall Machine 4500±50 |
| Width (mm) | 950 | |
| Height (mm) | 1500±50 | |
| Note | The above parameters are for reference only, and may differ from the actual parameters. | |
